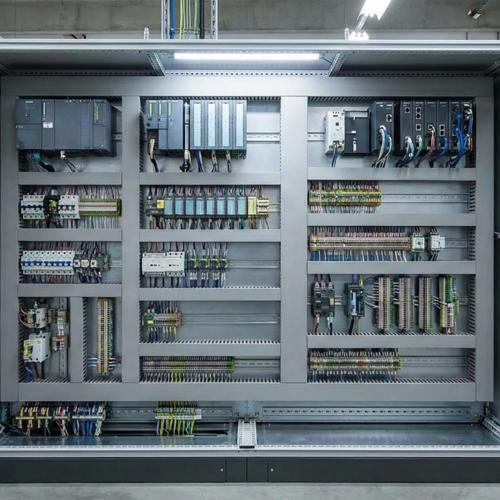

PLC PANEL

Price 400000.00 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

PLC PANEL Specification

Frequency
50/60 Hz Hertz (HZ)

Motor Power
Up to 15 HP (customizable) Horsepower (HP)

Driven Type
Electric

Efficiency (%)
>98%

Country Of Origin
India

Installation Guideline
Floor mounted, Wall mounted (as per requirement)

Accessories
Wiring ducts, Cable trays, Indicator lamps, HMI display (optional), Cooling fan

Temperature Range
0C to 55C (Operating) Celsius (oC)

Model No
Custom / Standard Models Available

Production Capacity
As per project requirement m3/hr

Usage & Applications
Factory Automation, Machine Control, Process Automation, Industrial Plant Control

Automation Grade
Automatic

Speed
Depends on PLC program cycle time Km/hr

Type
PLC Control Panel

Material
Mild Steel / Powder Coated Steel

Computerized
Yes

Automatic Grade
Automatic

Control System
PLC Control

Drive Type
Electric

Voltage
415V AC, 3 Phase kilovolt (kV)

Power
3 kW (customizable) kilovolt (kV)

Weight (kg)
120 kg (approximate) Kilograms (kg)

Dimension (L*W*H)
1200 mm x 600 mm x 2000 mm (customizable) Meter (m)

Color
Grey / Siemens Grey

Warranty
1 year

Capacity
Up to 500 I/Os (expandable) m3/hr

Features
Modular construction, Short circuit protection, Easy maintenance, Energy efficient, Reliable operation

Machine Type
Industrial Automation Panel

Surface Finish
Coated

Power Consumption
Varies with design and application Decibel-Watt (dBW)

Communication Ports
Ethernet, RS485, Profibus (as per application)

Testing
Completely tested before dispatch

Earthing
Provided as per IEC standard

Busbar Material
Electrolytic Copper

Compliance Standard
IEC, IS, CE Certified

Output Type
Relay / Transistor / Analog Outputs

Service Support
On-site and Remote support available

Spare Capacity
Available for future expansion

Display
Optional HMI Touch Panel

Wiring Standard
IS standard with ferrule numbering

Panel Protection Rating
IP54 / IP55 / IP65 (customizable)

Cable Entry
Top / Bottom (as per site layout)

Operational Humidity
Up to 95% RH (non-condensing)

Enclosure Type
Modular, Floor standing / Wall mounting

Mounting
Bolt-on panel / Skid-based (optional)

Input Type
Digital & Analog

Panel Cooling
Inbuilt cooling fan / Optional air conditioning

PLC PANEL Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
1

PLC PANEL About

Spotlight on the must-have PLC Panel: a top-drawer industrial automation solution boasting a praiseworthy mix of digital and analog input compatibility and triumphant versatility in output options-relay, transistor, or analog. Engineered with modular enclosures in powder-coated or mild steel, these panels deliver robust IP54/IP55/IP65 protection and are customizable per site requirements. Featuring electrolytic copper busbars and optional HMI touch panels, each unit ensures reliable, energy-efficient performance with reduced price options, easy maintenance, and short-circuit protection. Fully compliant with IEC, IS, and CE standards, scalable to 500 I/Os, and supported locally and remotely.

Key Applications & Commercial Use Areas

These PLC PANELS are widely used across application media such as industrial automation, machine control, and process automation. They serve commercial environments ranging from factory automation to complex motor power management, adaptable for floor or wall-mounted installations. Suitable for industrial plants, these panels fit diverse site layouts, fulfilling rigorous demands in both production and operational control. Their flexibility and robust construction make them ideal for various automation applications in manufacturing and process-oriented industries.

Markets Served & Payment Flexibility

Our PLC PANELS cater to a broad domestic market and are exported globally, ensuring timely delivered solutions to diverse customers. With competitive list prices customized per project requirement, we guarantee order completion within stipulated timelines. Flexible payment terms and comprehensive service support underscore our commitment, making the purchase and deployment process seamless. The panel's robust design and compliance with international standards ensure optimum value for industrial clients at both local and international levels.
